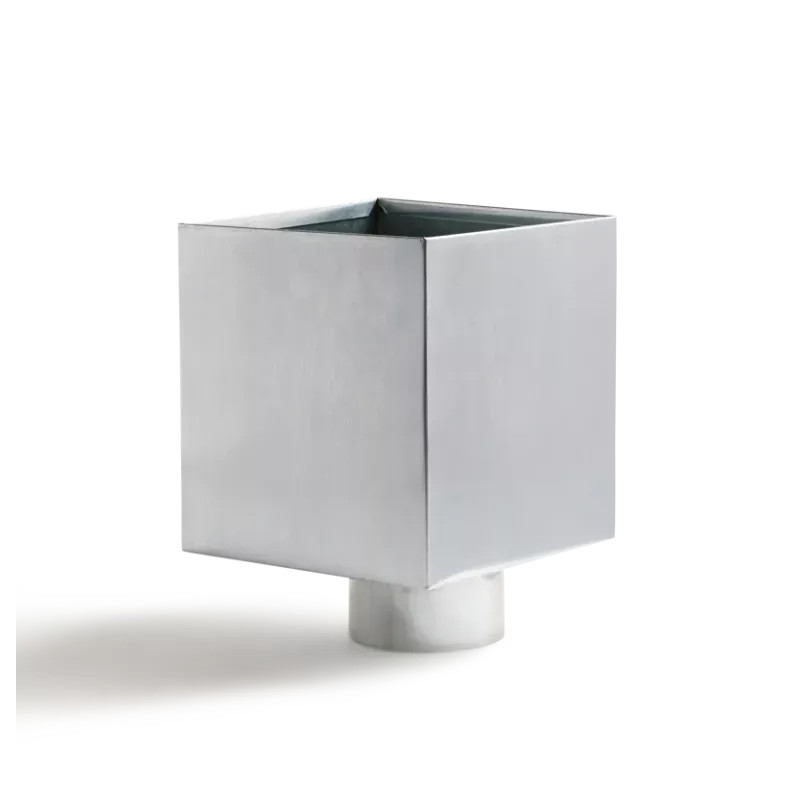

Rainwater head — outlet Ø 33 mm / 200 x 200 mm
CHF123.45
Tax included
| Rainwater head 200 x 200 mm with cylindrical outlet Ø 33 mm. Fixed high on the facade under the eave — water enters from the top via flat roof or gutter outlet and drains down into the downpipe. | ||||
|
| Rainwater head 200x200 mm, outlet Ø 33 mm. Top entry, drains into downpipe. 5 materials. |
| 📦 200x200 · 💧 Ø 33 · 🔩 5 materials · 🇨🇭 Switzerland |
|
SuissePliage — Downpipe accessories Rainwater head — outlet Ø 33 mm / 200 x 200 mmFacade collector · Top water entry · Outlet Ø 33 mm · Galv., alu, zinc, stainless, copper |
Role and functionThe rainwater head is the transition piece between the roof and the downpipe. Fixed high on the facade under the roof eave, it receives water from the top — through an opening cut in the upper back panel from a flat roof outlet or gutter — and channels it downward via the cylindrical Ø 33 mm outlet into the downpipe. Essential when a direct connection between the roof and the downpipe is not possible: flat roofs, large drainage surfaces or complex roof geometry. |
Available materials
|
|
Technical specifications |
||||||||||||
|
|
SuissePliage — Downpipe Rainwater head — Ø 33 mm200x200 mm · Outlet Ø 33 mm · Galv., alu, zinc, stainless, copper |
| Fixed high on facade. Water enters from top (flat roof/gutter), drains out Ø 33 mm at bottom into downpipe. |
|
Materials |
| Galvanised steel — Anti-corrosion, economical |
| Aluminium — Lightweight, maintenance-free |
| Zinc — Swiss standard, long-lasting |
| Stainless steel — Ultra resistant |
| Copper — Premium, architectural prestige |
|
Specifications |
| Dimensions: 200 x 200 mm |
| Bottom outlet: Ø 33 mm |
| Entry: From top — cut in upper panel |
| Fixing: 2 screws at top only |
SP-BAE-33
